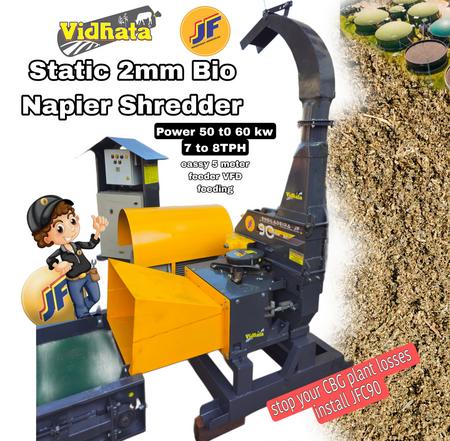

C90 Static Shredder for CBG Feedstock

C90 Static Shredder – Fine Chop Solution for CBG Feedstock

The C90 Static Shredder is a high-performance stationary shredding system specially engineered for Napier grass and similar biomass used in CBG (Compressed Biogas) plants. Designed for precision, it achieves a cutting size below 4 mm, making it ideal for hydrolysis and fast fermentation.

Key Specifications:

Model: C90 Static Fine Shredder
Output Capacity: Up to 20 tons/hour (Napier, Paddy, Maize)
Chop Size: < 4 mm – suitable for direct feeding to digesters or pellet lines
Drive: 40 HP Electric Motor or Tractor PTO Driven (customizable)
Material: High-carbon blades, long-life rotor, corrosion-resistant body
Mounting: Static (fixed plant), suitable for industrial setup or farm-based pre-processing

Benefits for CBG Operations:

✅ Optimal Pre-treatment: Fine shredding improves hydrolysis efficiency and reduces retention time
✅ Low Energy Cost: Operates on electric power, suitable for 24/7 shredding with minimal OPEX
✅ Rot-proof Feedstock: Shred and ensile or dry instantly to avoid biomass loss
✅ Compatible with Silage: Used for silage-based CBG and pellet production
✅ Compact & Durable: Industrial-grade shredder for long-term usage at CBG plant sites

Ideal Use Cases:

✔️ Static installation at biogas plant feed zone
✔️ Pre-processing for mountain silage and bag silage units
✔️ Fine chopping before rotary dryers or pellet machines

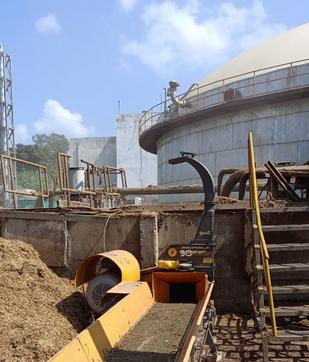

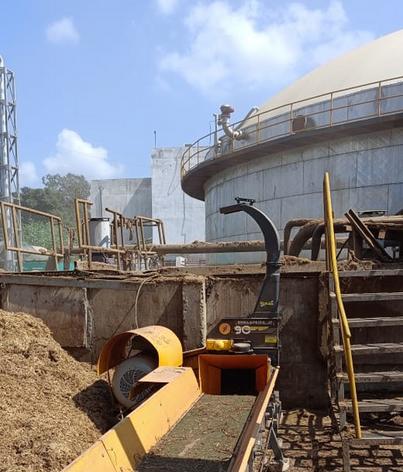

Already installed at large sites including Reliance Jamnagar, the C90 shredder is a proven solution for scalable, efficient CBG feedstock management.

Recommended Harvesting Models for Napier Grass – CBG Applications

Recommended Harvesting Models for Napier Grass – CBG Plant Integration

Efficient harvesting of Napier grass is critical for consistent and cost-effective feedstock supply to CBG (Compressed Biogas) plants. Based on our extensive field testing, crop handling, and fermentation outcomes, we recommend the following forage harvester models suited for different scales of operation.

🔹 JF C120 Forage Harvester

Ideal for: Small to medium-scale CBG plants (3–5 TPD)
Tractor Requirement: 75 HP
Cutting Width: 3 ft single row
Output Capacity: Up to 10 tons/hour (field proven)
Key Benefits: Fine chop size (~4 mm), easy maintenance, highly maneuverable
Application: Napier grass, maize fodder, basic paddy straw shredding

🔹 JF 1150 Forage Harvester

Ideal for: Medium to large-scale silage contractors or feed aggregators
Tractor Requirement: 80+ HP
Cutting Width: Dual row intake system
Output Capacity: Up to 20 tons/hour
Key Benefits: Higher throughput, multi-crop shredding, robust design
Application: Napier, maize, paddy straw, sugarcane tops

🔹 JF 1600 Forage Harvester

Ideal for: Industrial-scale operations & large CBG plants (10+ TPD)
Tractor Requirement: 105 HP
Cutting Width: Extra wide intake for rapid coverage
Output Capacity: Up to 30 tons/hour
Key Benefits: Maximum efficiency, fastest chopping, rugged industrial build
Application: Large Napier plantations, silage export, high-volume pelleting lines

All models are compatible with mountain silage, bag silage, and bunker silage workflows for year-round CBG feedstock availability.

CBG Feedstock Harvesting Plan

Why Daily Harvesting is Not Practical – Plan for Strategic Silage Buffers!

In practical agriculture, daily harvesting is often not feasible due to:

Seasonal climatic challenges (rain, winter dormancy)
Local cultural & social responsibilities
Limited labor availability during festivals or peak seasons

Proposed Napier Harvesting Cycle:

March (Post-winter)
June (Pre-monsoon)
September (Post-monsoon)
November (Pre-winter)

Example: For a 5 TPD CBG plant needing ~100 tons/day:

Annual feedstock: 35,000 tons
Per cycle: ~8,750 tons in 30 days
Daily harvest required during cycle: ~300 tons

Benefits of Strategic Silage Buffering:

Uniform quality of feedstock – ensures steady biogas yield
Optimal use of labor, tractors, and harvesters
Weather-proof – no disruption due to rain or winter
24/7 uninterrupted CBG plant operation

Recommended Harvesting Models: JF 1150 and JF 1600

Advice for CBG Plant Owners: Don’t invest in low-capacity daily harvesters. Choose high-capacity machines that exceed daily needs so you can finish 3-month harvests within 30 days – on time, every time.

Let’s build a resilient, efficient, and profitable bioenergy ecosystem.

Follow Us on LinkedIn

Stay updated with our latest innovations in CBG feedstock, Napier farming, silage tech, and more.

👉 Follow Vishal Garg

CBG Feedstock Harvesting Plan

Why Daily Harvesting is Not Practical – Plan for Strategic Silage Buffers!

In practical agriculture, daily harvesting is often not feasible due to:

Seasonal climatic challenges (rain, winter dormancy)
Local cultural & social responsibilities
Limited labor availability during festivals or peak seasons

Proposed Napier Harvesting Cycle:

March (Post-winter)
June (Pre-monsoon)
September (Post-monsoon)
November (Pre-winter)

Example: For a 5 TPD CBG plant needing ~100 tons/day:

Annual feedstock: 35,000 tons
Per cycle: ~8,750 tons in 30 days
Daily harvest required during cycle: ~300 tons

Benefits of Strategic Silage Buffering:

Uniform quality of feedstock – ensures steady biogas yield
Optimal use of labor, tractors, and harvesters
Weather-proof – no disruption due to rain or winter
24/7 uninterrupted CBG plant operation

Recommended Harvesting Models: JF 1150 and JF 1600

Advice for CBG Plant Owners: Don’t invest in low-capacity daily harvesters. Choose high-capacity machines that exceed daily needs so you can finish 3-month harvests within 30 days – on time, every time.

Let’s build a resilient, efficient, and profitable bioenergy ecosystem.

CBG from Napier Grass – Insights, Studies & Field Reports

CBG from Napier Grass – Research Highlights & Field Experience

Welcome to our knowledge portal on Napier grass as a strategic energy crop for Compressed Biogas (CBG) plants. This page summarizes key findings, field trials, BMP test reports, and insights shared on LinkedIn to promote scientific and scalable adoption of Napier-based feedstock models.

🔬 BMP Test Report Summary

        ✅ BMP Result: 304.73 Nml/g VS
        ✅ Sample: Silaged Napier (35% DM, cut size <4mm, no slurry pretreatment)
        ✅ Lab: UPL University, Ankleshwar
        ✅ Compared to: Close to maize silage levels (Germany standard)


This result confirms Napier as a high-yield feedstock option for Indian CBG plants, particularly when harvested and silaged optimally.

📌 Key Highlights from Our LinkedIn Posts:

Importance of cut size <4mm for better gas extraction
Strategic silage buffer planning (120 days/year model)
Effectiveness of Mountain Silage & Silopack storage for remote locations
Comparison of F1 vs F2 Napier seed quality for consistent yields
Feeding Napier with 35%+ DM increases plant output and fermentation health
Low sulfur Napier contributes to lower H₂S levels in raw biogas

📽️ Featured Videos:

JF C120 Harvester Demo – Napier Cutting JF 1600 Forage Harvester Overview JF 1150 Dual Row Silage Harvesting

📈 Planning Support for CBG Plants

We offer technical consultation for:

Napier plantation layout and soil-water compatibility
Harvesting window planning (March, June, Sept, Nov)
Silage buffer target calculation and logistics
Selection of high-efficiency harvesters and static shredders

📥 Download & View Full Test Report

👉 Click here to download the BMP Test Report (PDF) *(Upload PDF & update this link)*

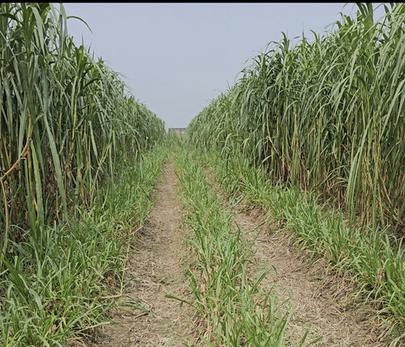

Introduction to Napier Grass & Silage for CBG

Introduction to Napier Grass & Its Role in CBG Feedstock Systems

Super Napier grass is widely cultivated across India and traditionally used as animal fodder, especially during winter months. Some progressive farmers have also adopted silage-making practices for improved digestion in ruminants and biogas digesters.

We provide end-to-end solutions for harvesting, cutting, and silaging Napier grass, with installations across hundreds of locations in India.

Popular Napier Names: King Grass, Sudanese Grass, Elephant Grass, Super Bullet, CO-4, CO-5, and Brazil’s high-yield variety Capia Su (up to 300 tons/acre/year).

🔍 Importance of Growth Age & Dry Matter

The key to good yield is not just the variety but the harvest maturity and dry matter content:

Young Napier (50–65 days): 15–22% DM, only 45–65 kg Bio-CNG per ton
Mature Napier (90–110 days): 32–36% DM, yields 85–95 kg Bio-CNG per ton

Note: Cutting grass too frequently increases water content, reducing usable solid content and digestor efficiency.

🌾 Myths About Harvesting Frequency

There's a misconception that harvesting every 60 days (6 times/year) yields more than 90-day intervals (4 times/year). In truth:

Total annual solid output remains similar.
Frequent cuts add water, not biomass.
Older Napier reduces digester volume requirement by 2x.

📦 Importance of Silaging Napier Grass

Silage is essential for safe, stable, and efficient feedstock supply. Reasons include:

1. Air Removal: Fresh grass is airy and may float in digesters, damaging roofs or clogging gas pipes. Silaging removes air through hydraulic compression or jumbo bagging (JF Silo Master).
2. Pre-Fermentation: During 24+ days of silaging, acidification and hydrolysis begin, boosting biogas yield by 5–10%.
3. Weather-Proofing: Ensures feedstock availability during monsoons and winters when harvesting isn't possible.

Properly silaged Napier is denser, more digestible, and safer for biogas plant operations.

```

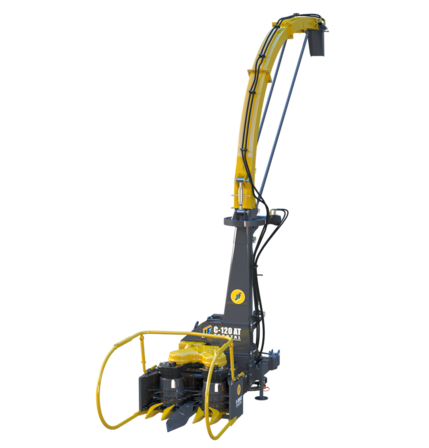

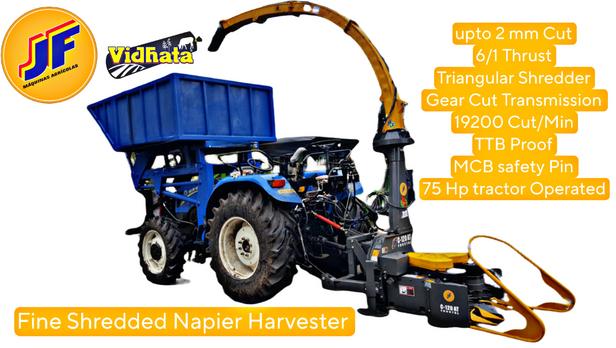

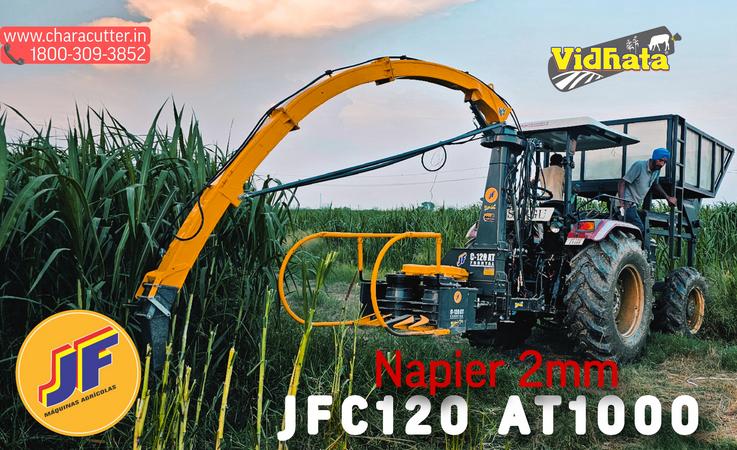

JF C120 Forage Harvester – Ideal for CBG Feedstock

JF C120 Forage Harvester – Powering Your CBG Feedstock Efficiency

The JF C120 is a high-speed, professional-grade forage harvester designed for harvesting Napier Grass, Maize, and other energy crops. Engineered for precision and high output, it is the ideal choice for CBG (Compressed Biogas) plants requiring large volumes of quality feedstock chopped to perfection.

      🔥 CBG-Ready Chopping: Consistent 4 mm chop size improves silage fermentation and methane yield.


Key Features:

🔧 Model: JF C120 Forage Harvester
⚙️ Cutting Width: 3 feet – single row
🚜 Tractor Required: 75 HP or above
⚡ Theoretical Capacity: Up to 30 tons/hour (15 tons/hour actual in field conditions)
🔁 Multispeed Rotor: Optimized for fine cutting of Napier and Paddy Straw
💡 Application: Napier Silage, Energy Feedstock for CBG, Cotton Stalk Shredding
⏱️ Maintenance Cycle: Every 8 hours
📦 Warranty: 10,00 hours (machine only)
💰
🕒 Delivery: 90–120 days

Why JF C120 for CBG Feedstock?

✅ High-capacity harvesting supports aggressive 30-day silage campaigns

✅ Delivers uniform cut size to enhance anaerobic digestion and gas yield

✅ Saves time and labor vs traditional manual or small-scale harvesting

✅ Ideal for high-density Napier plantations and large-scale CBG plants (3–10 TPD)

✅ Field-proven in Indian conditions – reliable in all seasons

Optional Add-ons:

🛻 Collection trolley with top-loading bucket

⚙️ PTO Shaft with heavy-duty clutch

🧰 On-site training and operator support

📍 Demo available at Noida Metro Pillar No. 146 | 📞 Contact: +91-9997408448

🌐 Visit: www.characutter.in | #CBG #NapierHarvester #JFIndia #SilageMachinery #AgriInnovation
